A Closer Look at the Equipment and Packaging Process
Workshop photographs offer a starting point for understanding the equipment behind a product description. These views show packaging equipment during assembly and a Pinxu PH machine in the workshop.

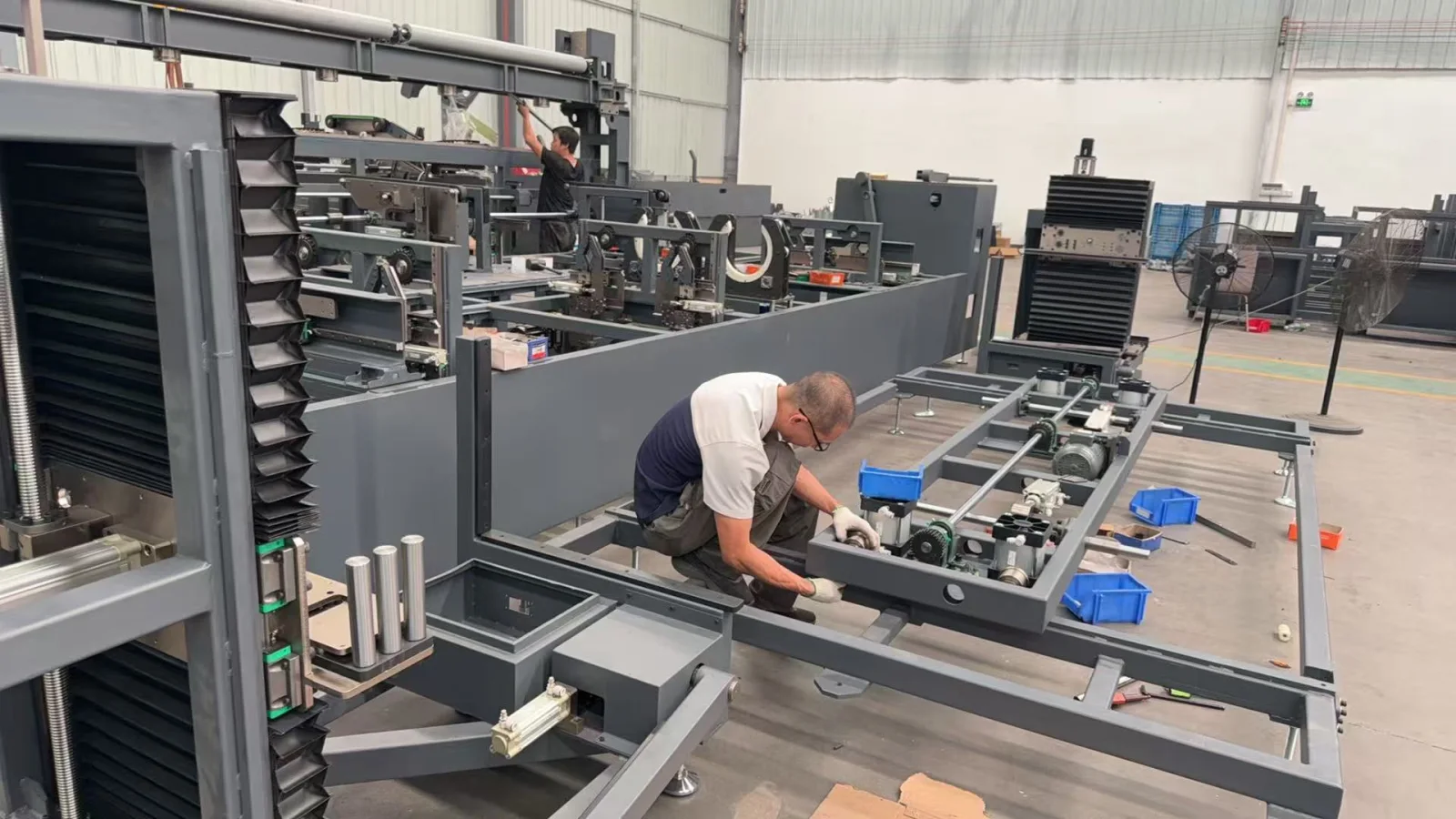

Packaging equipment during assembly
The assembly photographs show the equipment at a stage before the work is complete. Use the wider view to understand the visible arrangement and the closer view to identify the area you would like to discuss.
When asking about a detail, refer to the photograph and describe what you want to understand. The configuration proposed for your project should be confirmed separately.

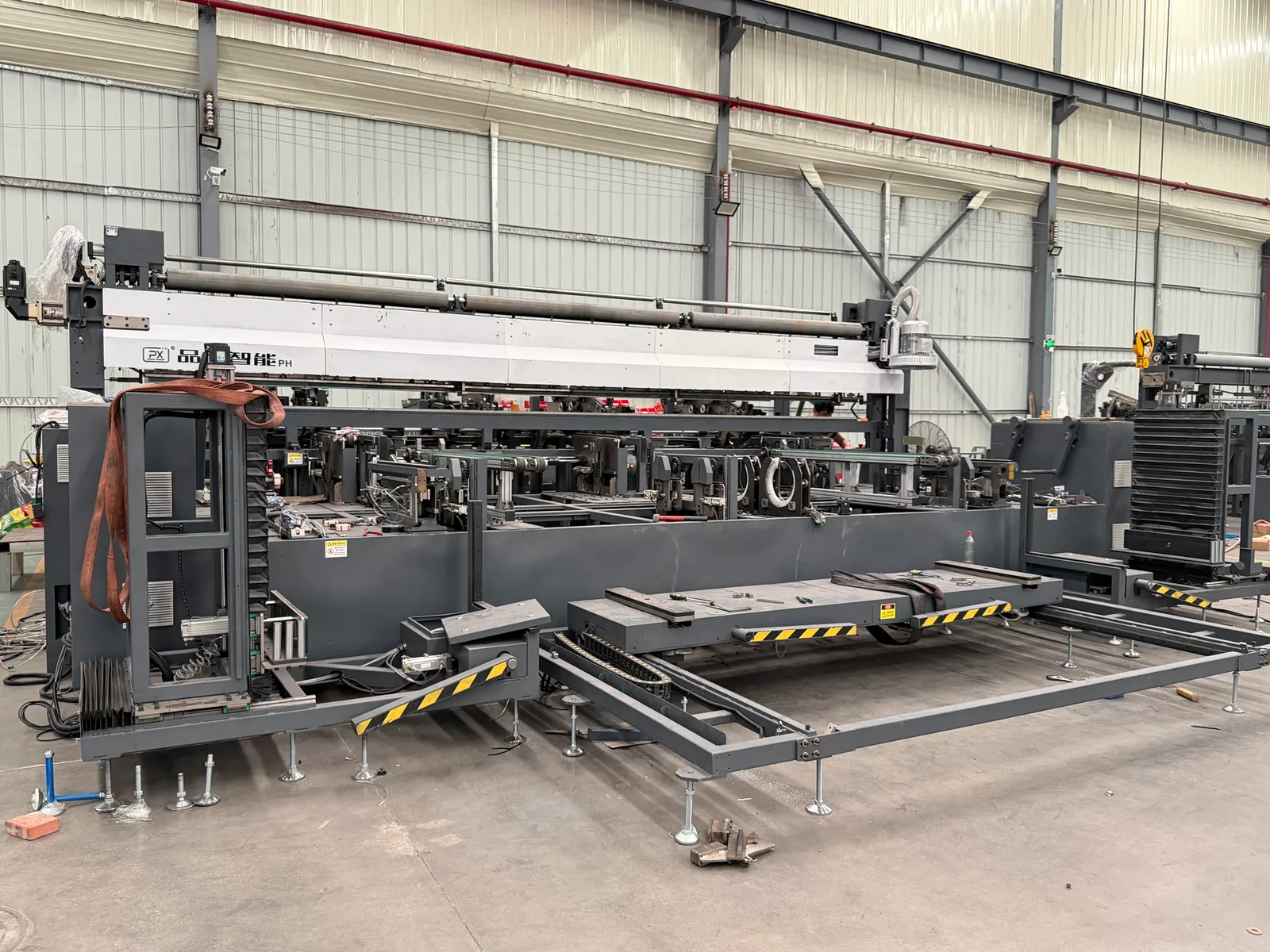

A PH machine in the workshop
The PH photograph shows the machine with the Pinxu name and PH marking on the frame. It provides a view of the single-film equipment discussed on our product page.
For questions about the PS dual-film version, describe your film-changing requirements so the conversation can focus on that model. The PH photograph illustrates the machine shown, rather than both versions.
Follow the product through the proposed process
Describe how pipes arrive for packaging and what should happen after they are packed. Feeding, separation, collection, bundling and stacking are stages to discuss when defining the required line.
| Part of the process | A useful starting question |
|---|---|
| Arrival | How are pipes presented from the previous operation? |
| Packaging | What product range and film need to be handled? |
| Departure | How should packaged products be collected and moved onwards? |
These questions organise the project discussion. They do not assign every stage to the machine visible in a photograph.
Connect the discussion to your workshop
Explain your available space, product flow and existing equipment. Mention any drawing you already have so a way to review it can be arranged.
Photographs help you recognise equipment and ask more specific questions. Installation dimensions and connection points need to come from the proposed configuration for your site.
