A batch arrives.
One pipe advances.
The pusher separates one square pipe, releases it and returns for the next cycle.
Illustrative mechanism motion · slowed for explanationPipe & profile packaging automation
Pipe Packaging Equipment and PE Film
Plan your next packaging line or source film for the one you already run. Pinxu supplies automatic packaging equipment for pipes and profiles, together with PE film for pipe packaging.
01Feed 02Wrap individually 03Tape bundle 04Discharge
Our systems
What are you looking to package?
Tell us about the products leaving your production line: their shape, length, dimensions and how you want them packed. We use those details to discuss equipment and film requirements with you.
Our equipment range includes PH single-film and PS dual-film models. Applications include round, square and rectangular pipes, with profile requirements assessed against the proposed configuration.
Equipment and film, with a route for each enquiry
01 / Equipment↗
Planning equipment
Start with the pipe range and the packaging task. Explore model options, then discuss how feeding, wrapping and downstream handling fit your production process.
See the equipment range
02 / Consumable↗
Buying packaging film

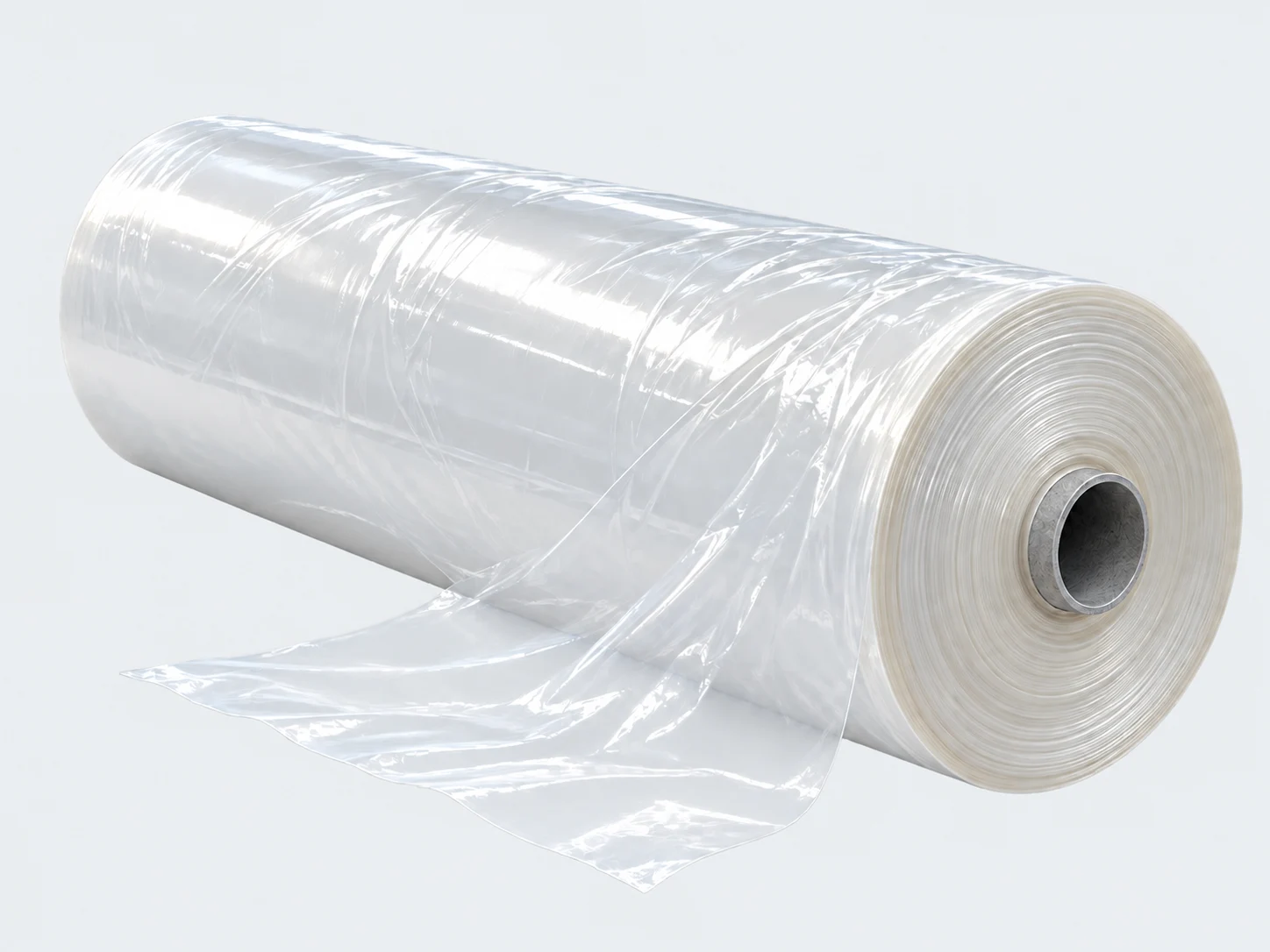

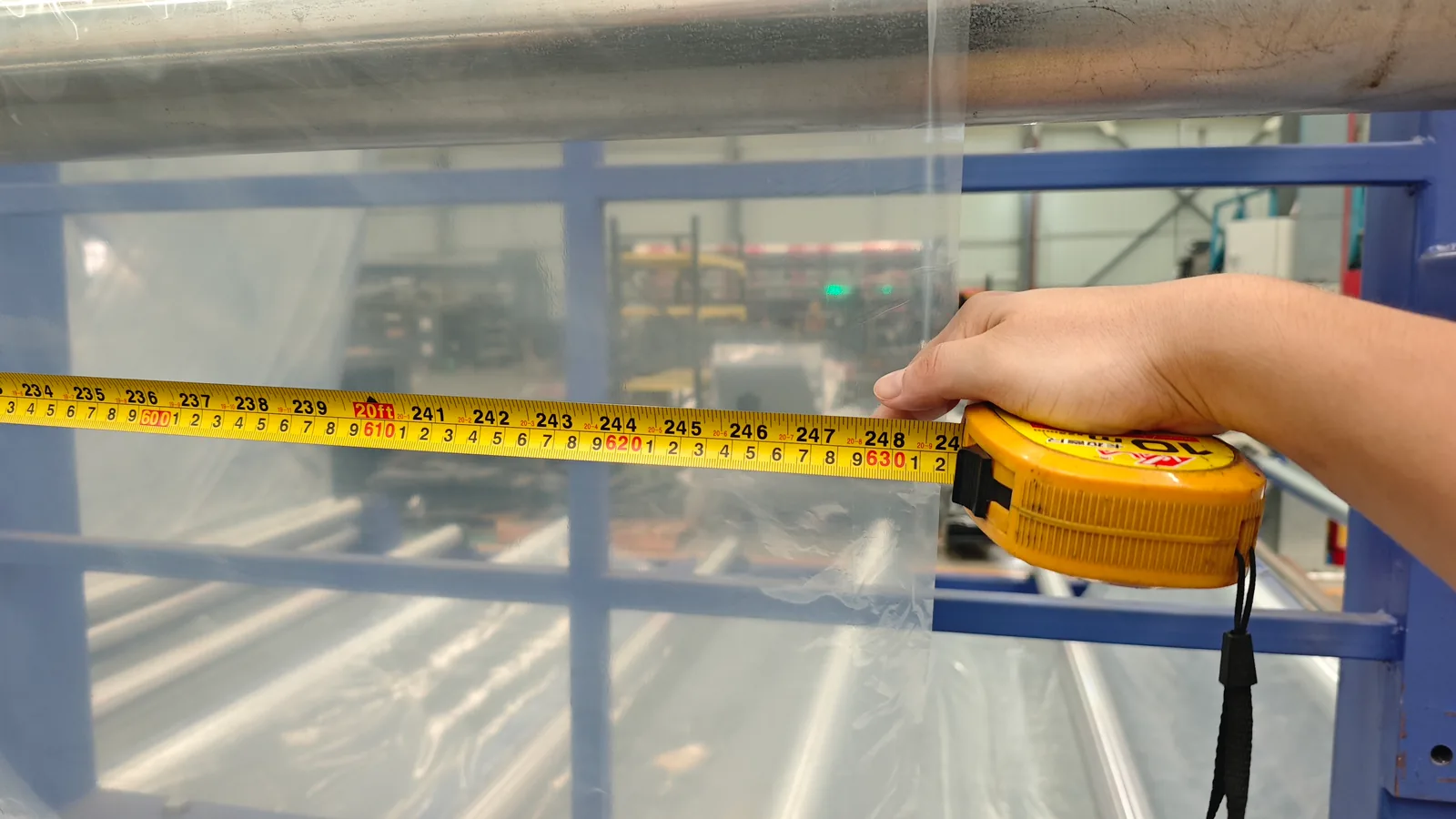

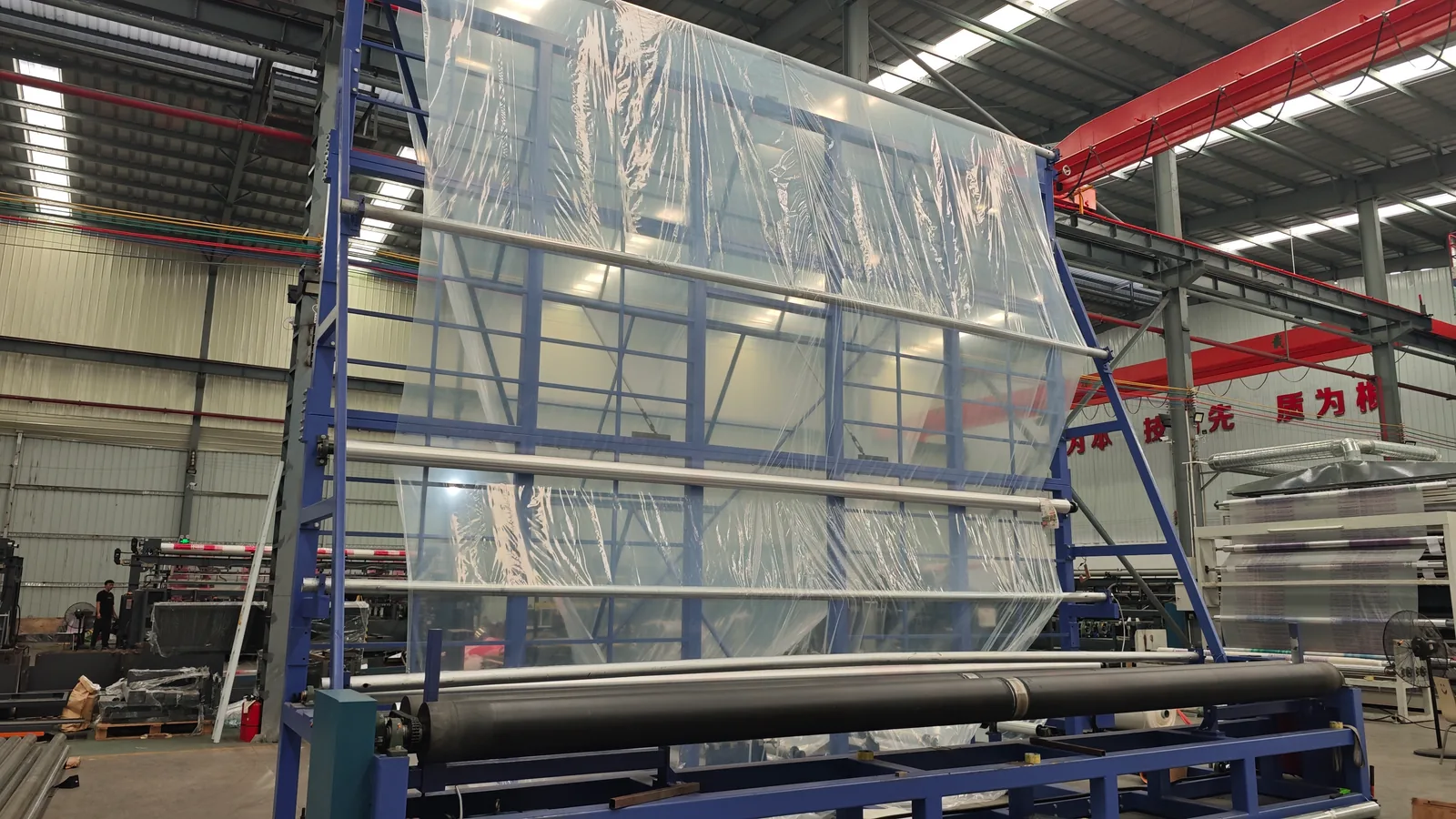

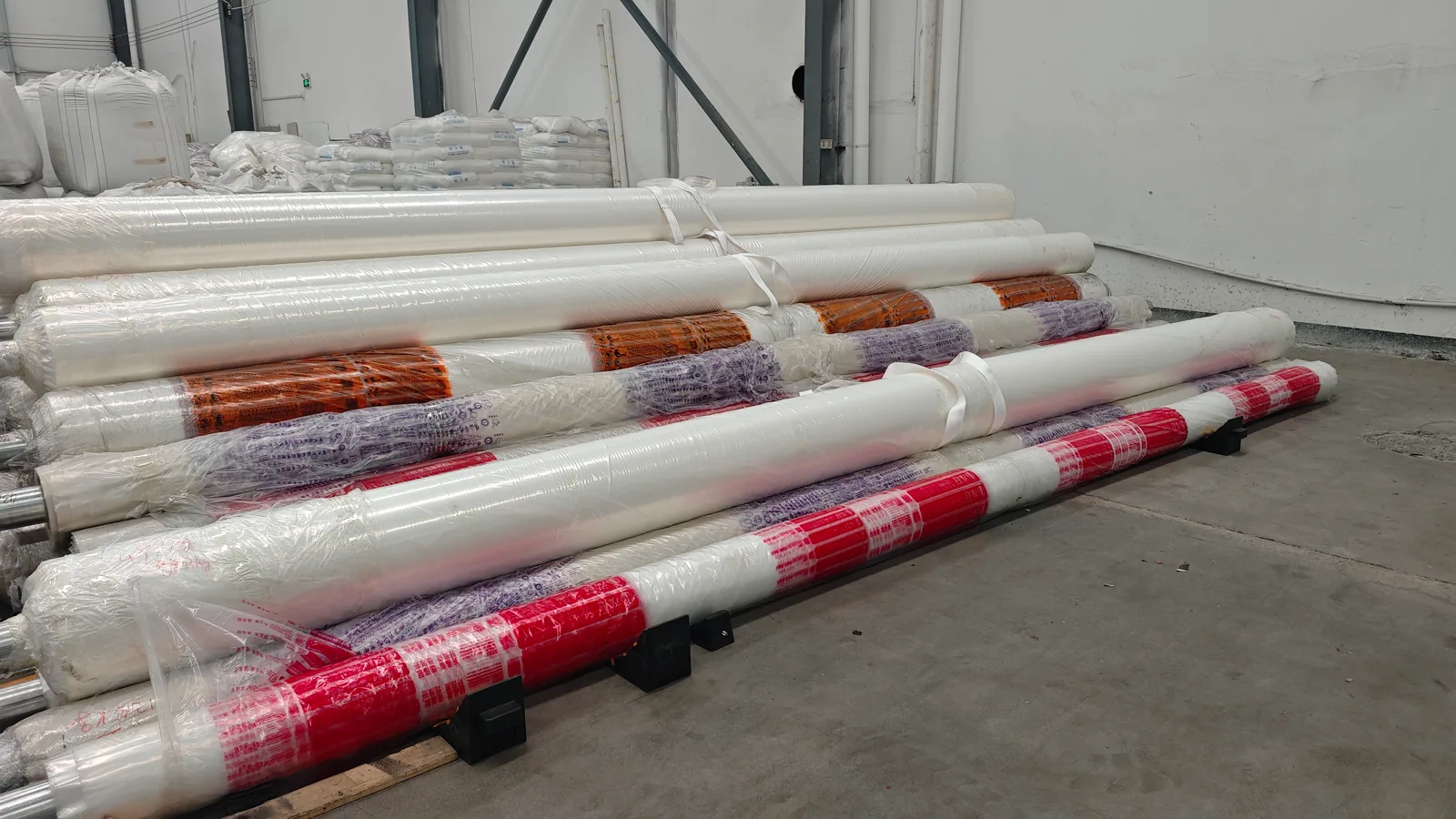

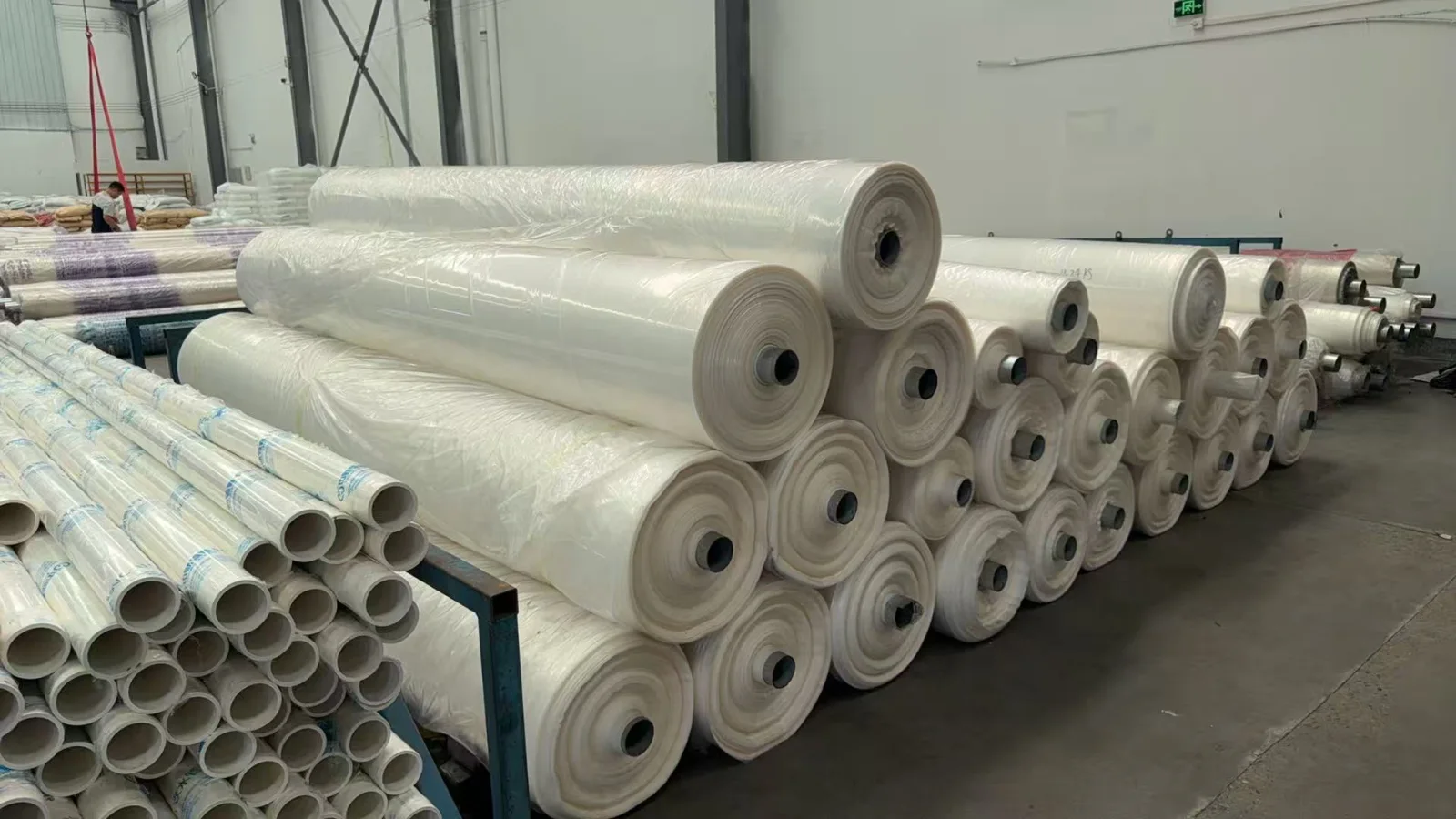

Choose clear or printed PE film and share your intended application. Film specifications, quantity and supply arrangements are confirmed for your order.
Explore clear and printed film

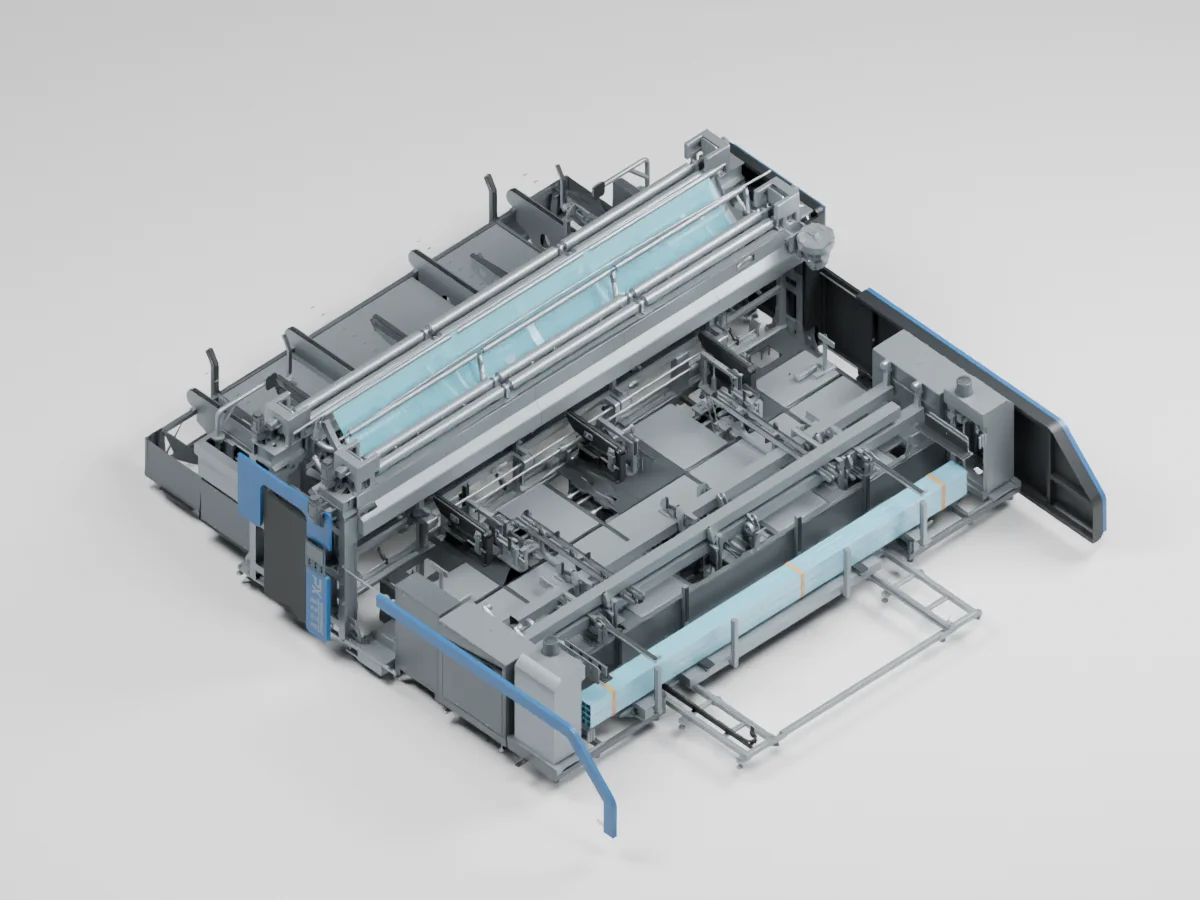

Inside the process / Line tour
Follow the pipe.
Understand the line.
One pipe at a time. One protected bundle at the end. Explore the five stations that connect them.
Interactive machine view
Explore the five steps while the model prepares.Interactive 3D · five process steps
Cyan pipe = current workpiece · blue machine parts = active mechanisms · illustrative mechanism motion.
A batch arrives.

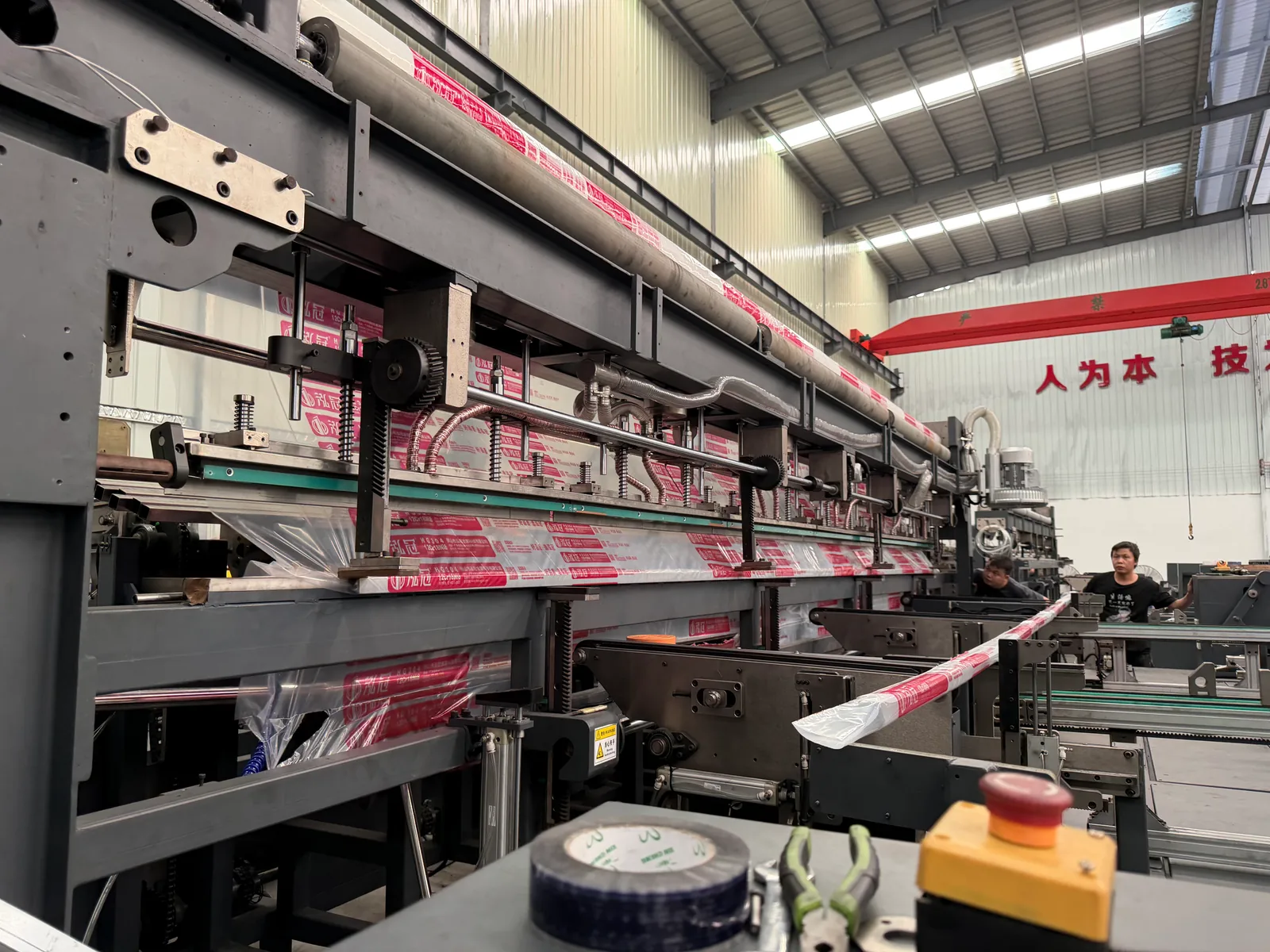

Feed the film.
Seal. Release.
Film folds around one pipe as the rollers turn. The sealing carriages descend, seal and cut, then retract. No heat shrink.
Illustrative motion · slowed to show the sealing cycleFour. Five. Six.
Ready to bundle.
The last two protected pipes join the collection station, completing a six-pipe bundle before taping.
Six-pipe example · final bundle count is application-specificProtected separately.
Secured together.
Adhesive tape secures six film-protected square pipes into one bundle.
Individual filmAdhesive tape
Illustrative sequence · not actual machine timingLift. Transfer.
Place.
The secured bundle moves to discharge and lowers onto the previous bundle.

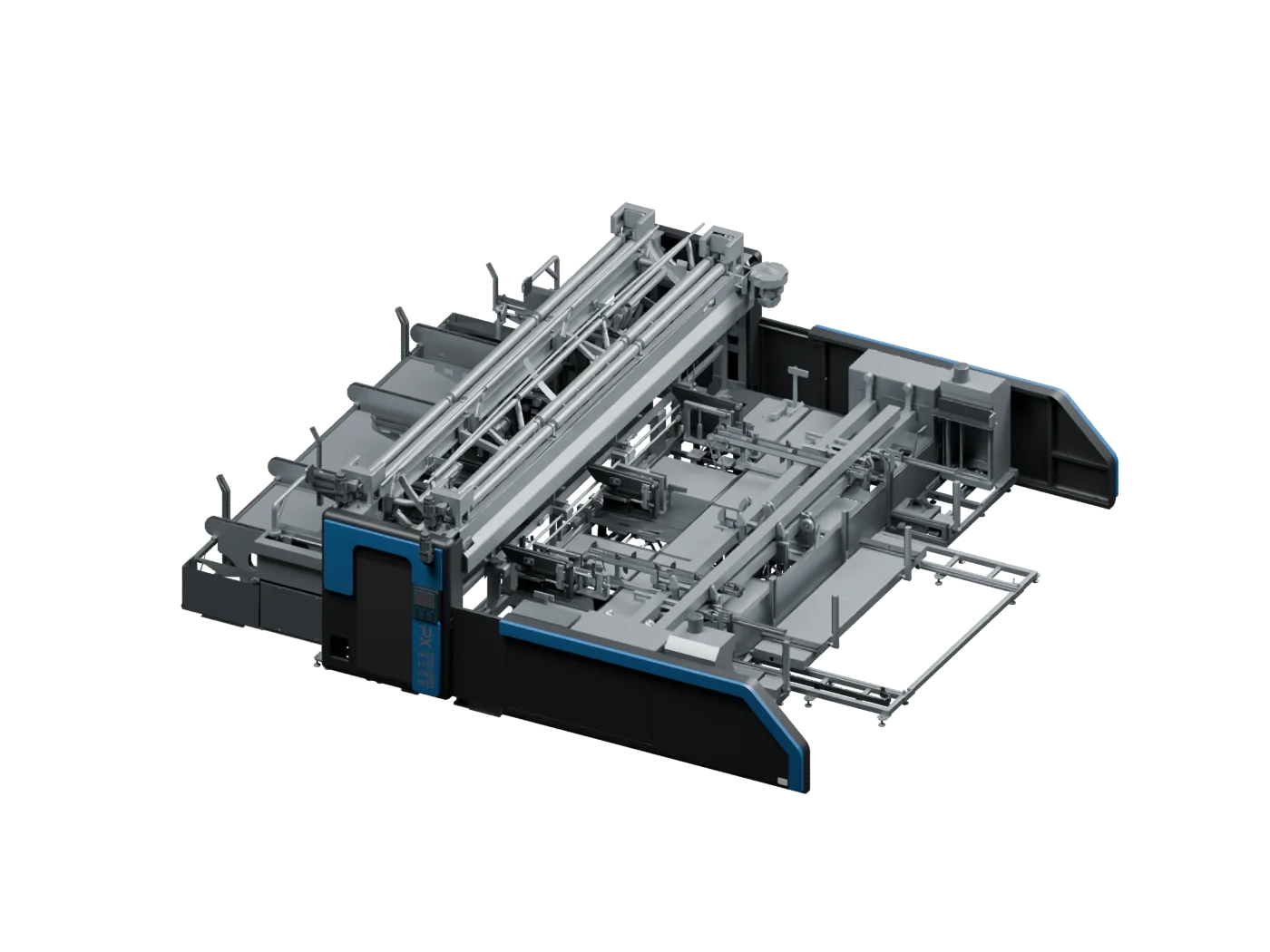

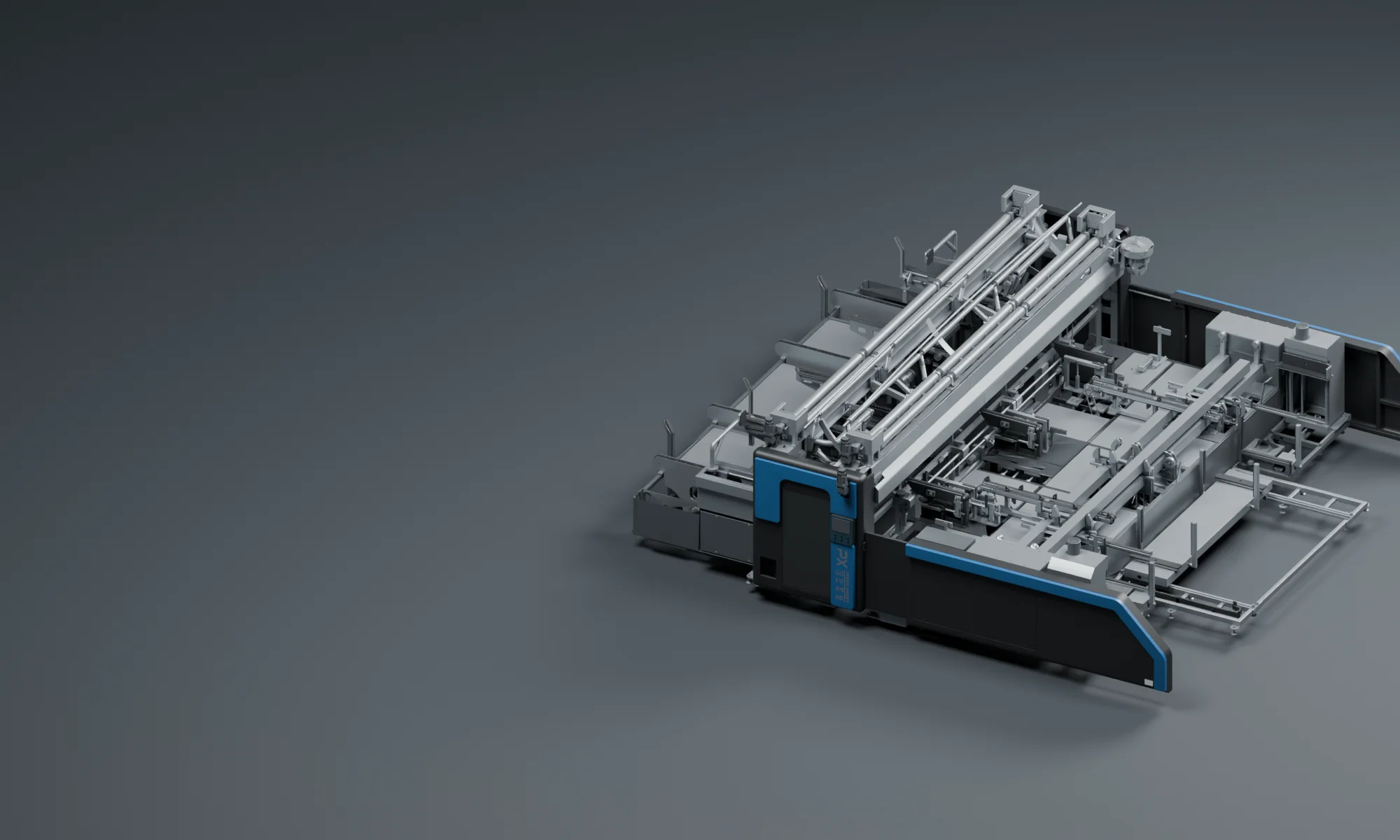

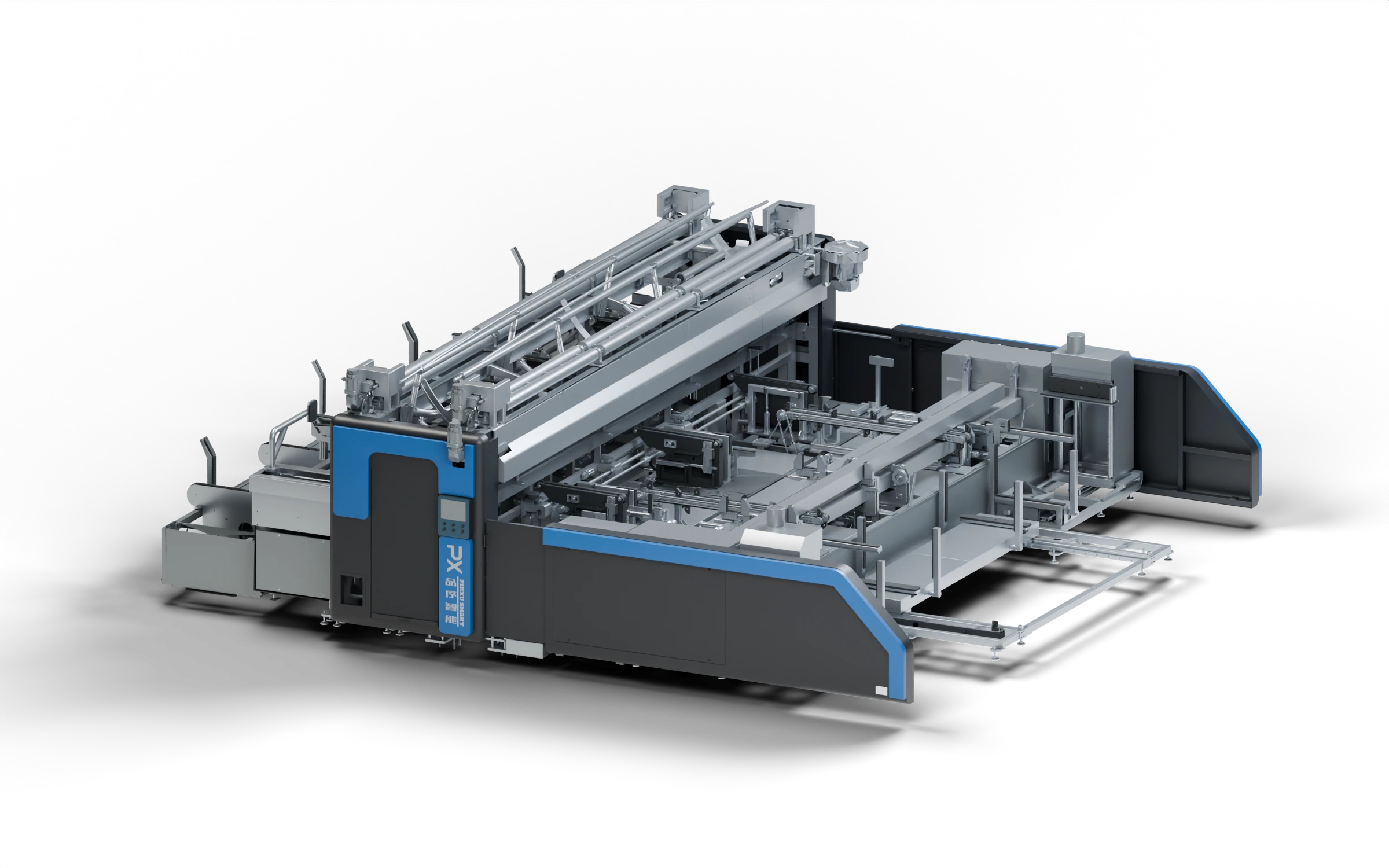

Illustrative motion path · engineering confirmation requiredSee the complete machine ↗Engineering support
A closer look at Pinxu
Foshan Pinxu Intelligent Equipment Co., Ltd. is based in Foshan, Guangdong, China. We focus on automated pipe and profile packaging equipment and the PE film used with pipe packaging applications.

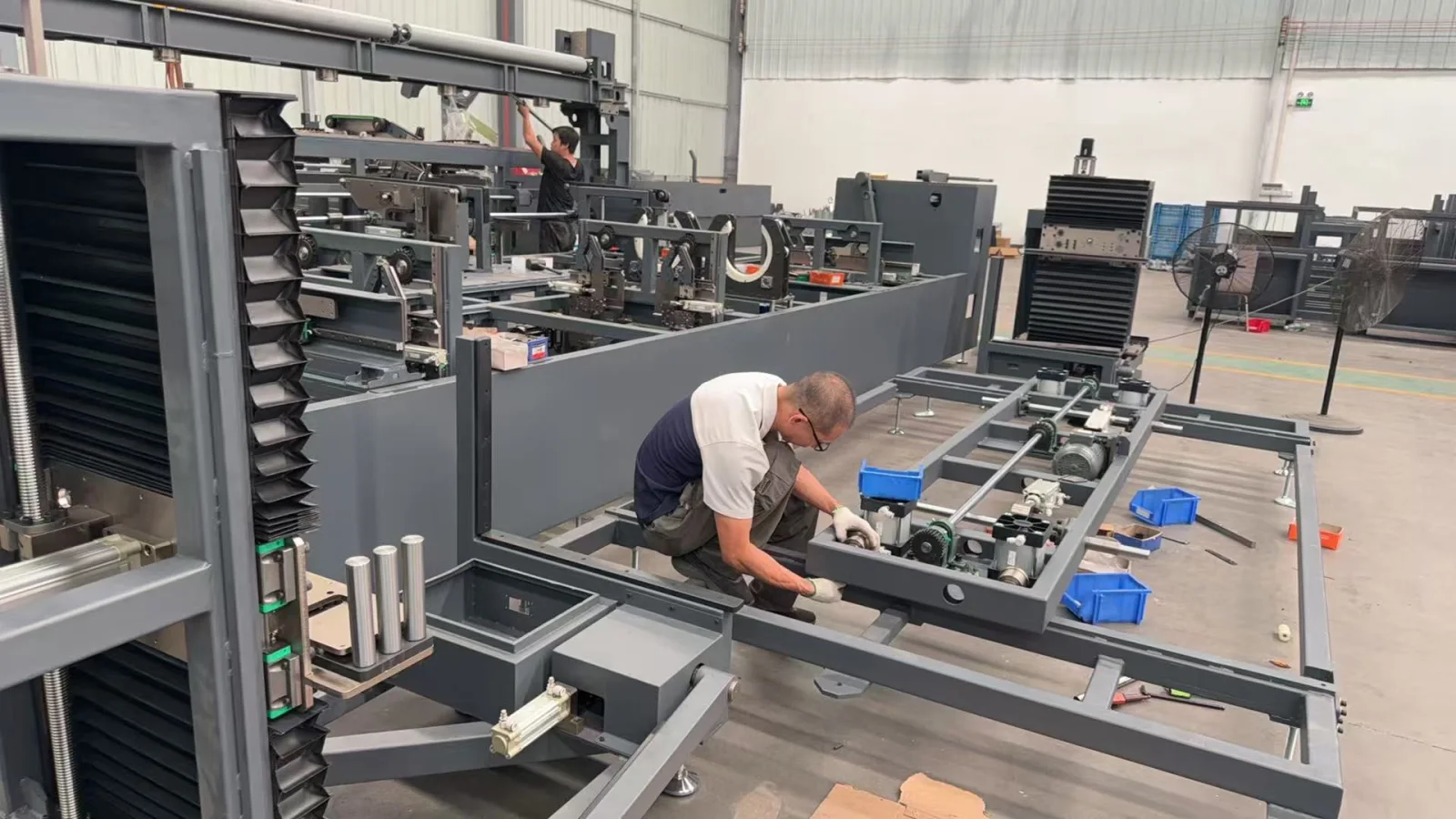

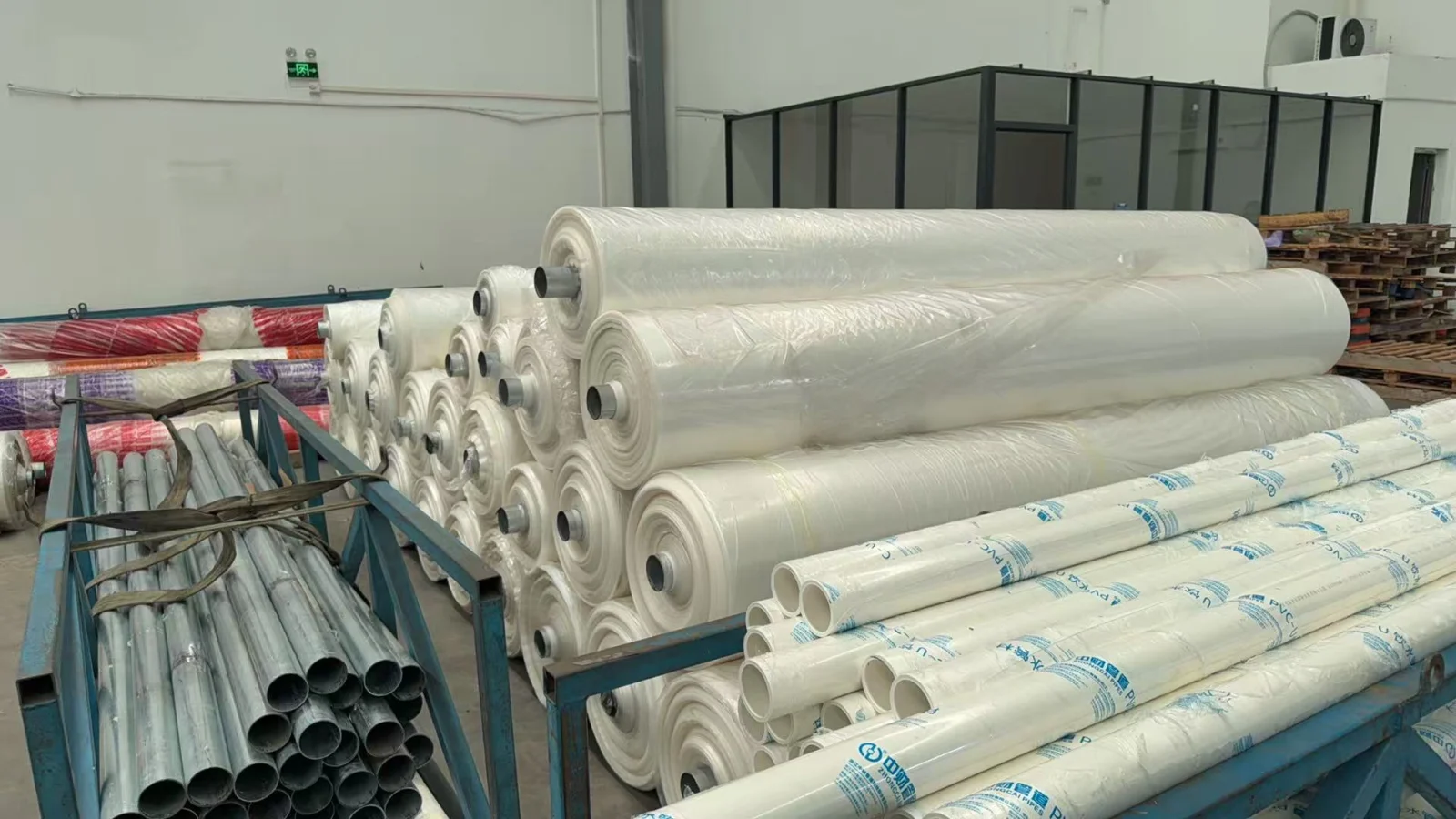

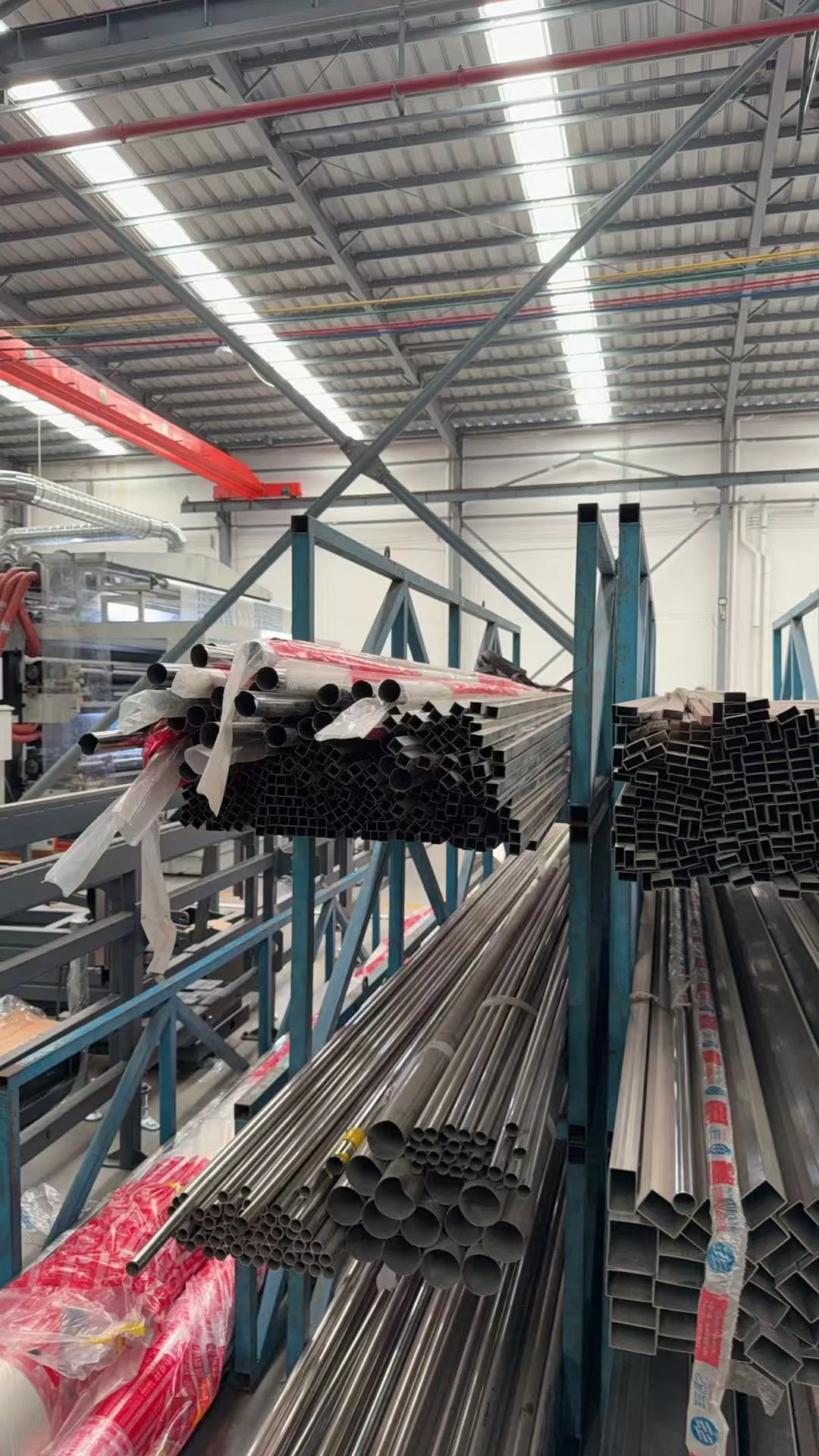

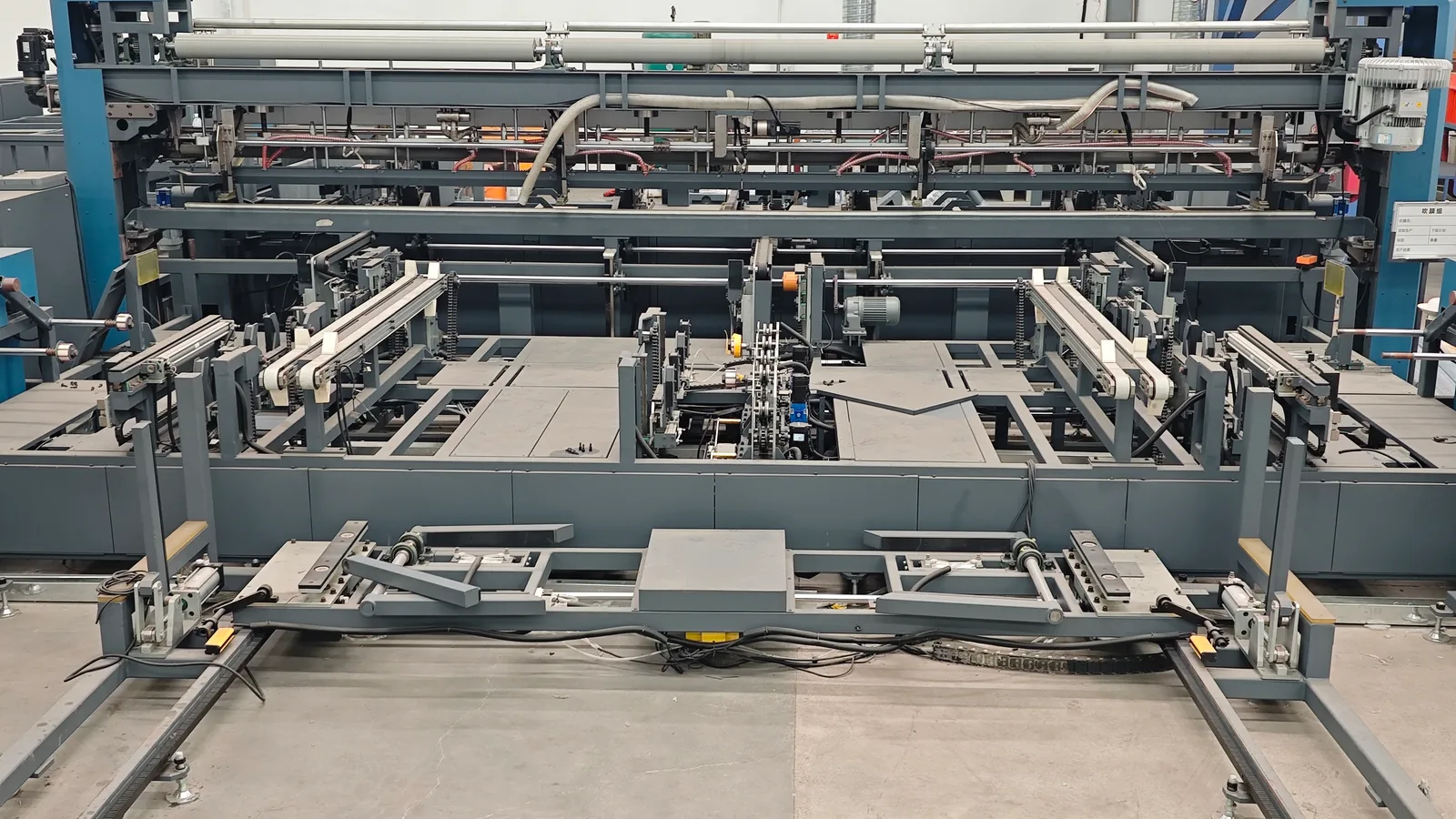

See our equipment and workshop photographs, learn about our business, and find a direct way to contact us.
Start with the packing task
You do not need a finished specification to begin. Describe what you pack today, what you want to change, and any dimensions you already know. We can discuss the remaining details during the next conversation.
For help preparing those questions, explore our equipment selection, film specification and evaluation guides.
Your packaging project
Start with the packing task
You do not need a finished specification to begin. Describe what you pack today, what you want to change, and any dimensions you already know. We can discuss the remaining details during the next conversation.
