Product and finish
State whether you are packaging square, round or rectangular pipes, and provide the material and size range. Describe the surface appearance that needs to be maintained after packaging.
Dedicated consumable

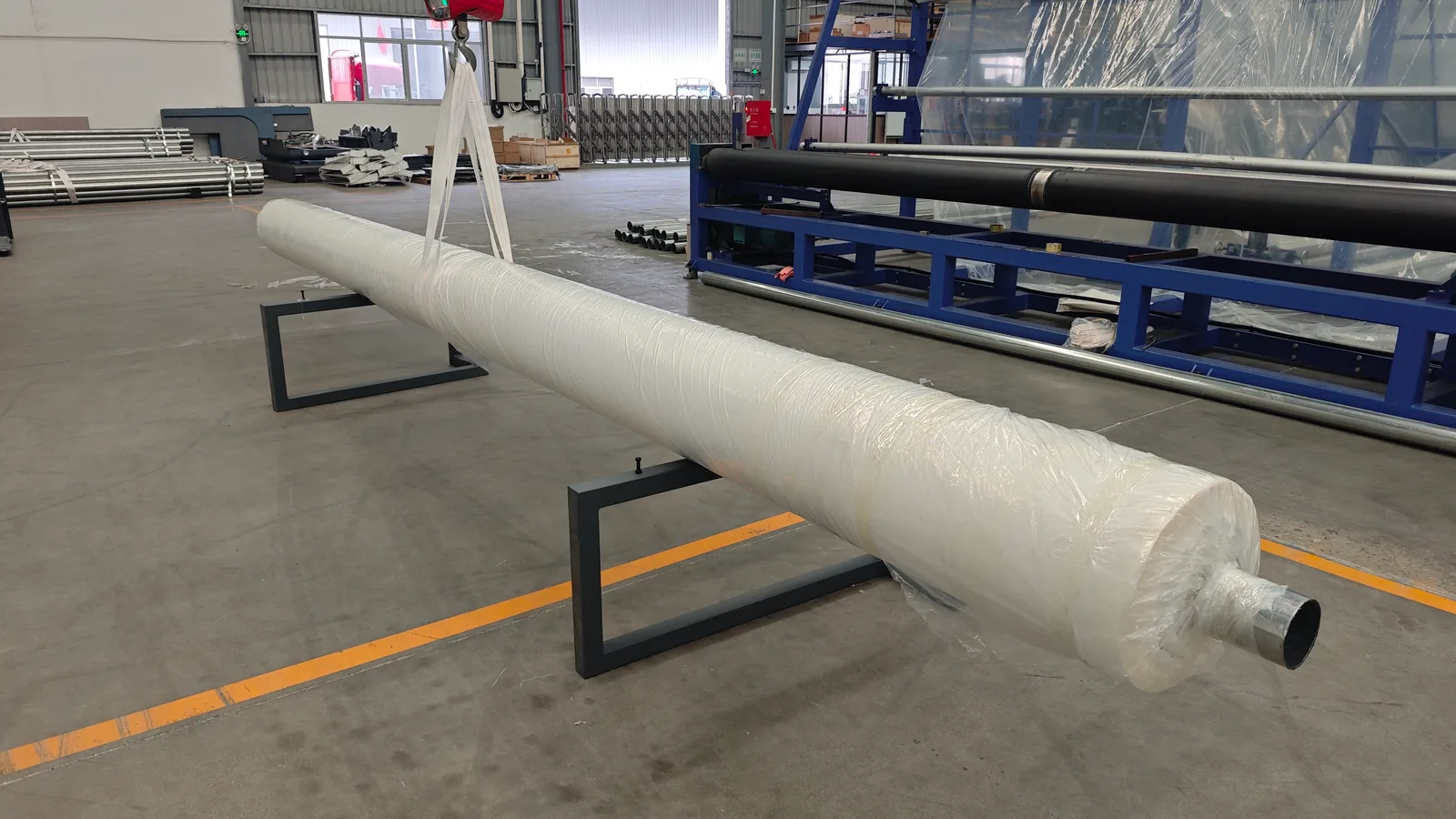

PE Film for Longitudinal Pipe Packaging
Transparent and printed packaging film for pipe and profile applications. Specify the product dimensions, required appearance and machine roll format together when selecting the material.
Equipment + material
Match the roll to the process.
The supplied film product information specifies PE material and longitudinal packaging. Width, thickness and roll diameter are available to a custom specification, so the reference figures below should be checked against the machine and packaged product before ordering.
For the illustrated PH line, film protection is applied to individual pipes before collection and adhesive tape bundling. Sealing the film is a different operation from heat shrinking; the demonstrated equipment does not contain a heat-shrink stage.
When replacing film on an existing line, provide the current roll specification and describe the seal and feeding requirements. A roll that fits mechanically still needs to be suitable for the intended packaging result.
Reference product data
Confirm the order specification in writing.
These figures come from the supplied film specification. Custom sizes, sealing conditions, storage arrangements and the delivery schedule should be agreed for the order. The reference sealing time is not a complete machine-cycle or throughput rating.
| Material | PE |
|---|---|
| Packaging orientation | Longitudinal |

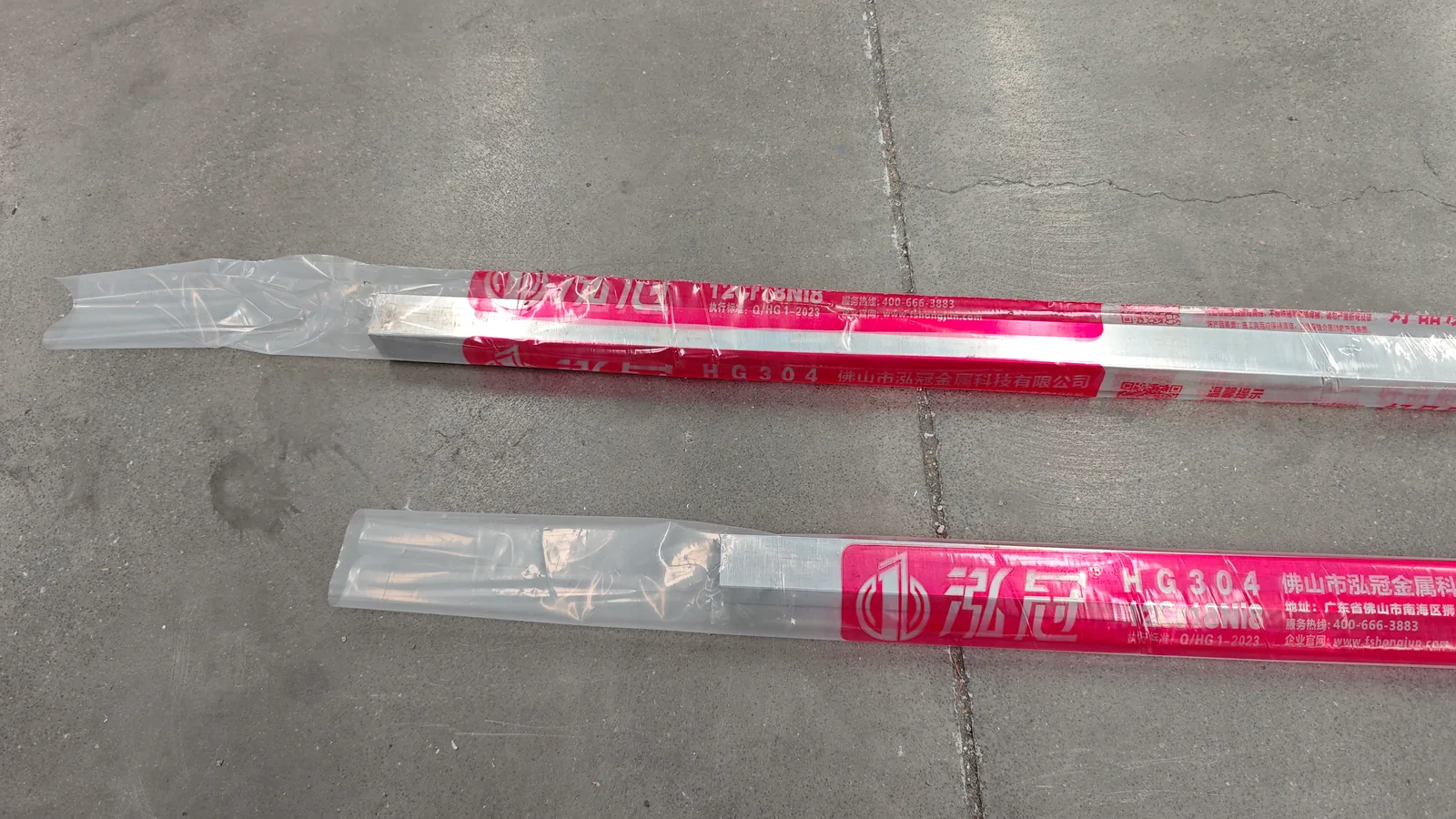

| Appearance | Transparent or printed |
| Film width | 3–6.6 m; custom specification available |
| Film thickness | Custom specification; confirm thickness in the order |
| Length per roll | Approximately 1,000 m |
| Weight per roll | 300–400 kg |
| Roll diameter | 390–450 mm; custom specification available |
| Reference heat-sealing time | 0.8–1.2 seconds |
| Storage shelf life | 6 months; confirm storage conditions |
| Minimum order | 5 tonnes for transparent or printed film |
| Reference lead time | 20–30 days; confirm the order schedule |
Selection inputs
Prepare a useful material enquiry.
Machine and roll
Identify the packaging line, roll mounting arrangement and existing film dimensions. Include the sealing method and any observations about the current film feeding or finished seal.
Appearance and order
Choose transparent or printed material and describe the required identification or artwork. Indicate the quantity, destination and desired delivery date so the commercial specification can be reviewed.
Select the film alongside the packaging line.
Review the PH equipment specification and the packaging planning guides, or send the details of an existing line for discussion.
Designed for the machine
Good packaging starts before the seal.
Pinxu develops dedicated film formulations and specifications around the material, profile shape and packaging process. Roll dimensions are only one part of that match.
Feed consistently
Uniform thickness and a friction coefficient suited to automatic feeding help the film travel through the system. The aim is smooth delivery with fewer film jams and breaks, rather than selecting a roll only because it fits the mounting position.
Wrap the surface
Tensile performance, toughness and puncture resistance support close, even wrapping around pipes and profiles. Film selection should consider edges, surface finish and the appearance required after wrapping.
Form a sound seal
The dedicated film is developed for the line’s sealing and cutting operation, with attention to seal integrity and resistance to cracking or edge separation. Actual settings and acceptance criteria depend on the selected material and machine.
Formulation options
Choose protection for the application.
Transparent and printed films are available. Special-function formulations can be selected for the required surface protection and handling environment.
These are configurable options, not a claim that every supplied film includes every property or meets a particular test standard.
| Scratch protection | Describe the finish and contact conditions that matter during packaging and subsequent handling. |
|---|---|
| Dust protection | Define the intended coverage and whether the ends remain open; film choice alone does not define the whole package. |
| Moisture protection | Specify the storage and transport conditions and required package closure. No waterproof rating is claimed here. |
| Anti-static option | Identify the application and required performance so the formulation and verification method can be agreed. |
| Printed appearance | Provide the required brand identification or artwork alongside the roll specification. |
Film questions
Specify the material and the result.
Can the film be customized beyond its width?
Yes. The product range supports customized formulation, thickness and roll diameter as well as width. Start with the product material, shape and packaging process, then define the required appearance and optional functions.
Can I use it on another packaging machine?
Suitability needs a review of that machine’s feeding, roll mounting and sealing requirements. A compatible roll size alone does not establish process compatibility.
Does heat sealing mean heat shrinking?
No. Sealing joins the film at the seal area. The demonstrated PH process does not include a heat-shrink stage.
Are puncture resistance and anti-static performance quantified?
No test values are stated in the supplied product introduction. Where a measured property is required, include the target and test method in the order specification rather than relying on a general description.
