Product and surface
Provide the pipe material, section, length range and weight. Describe the finish and any areas that need particular protection. The square-pipe animation is an example, not a universal dimensional specification.
From process to configuration
Protect each pipe. Organize the finished package.
Plan an automatic packaging process around the product entering the line and the package required at discharge. Film protection and adhesive tape bundling perform different jobs in the illustrated system.
The starting point
Define the packaging result first.
For the demonstrated square-pipe application, a batch arrives at the loading conveyor, but the wrapping operation handles one pipe at a time. Each protected pipe then joins the collection area before the group is taped and transferred for stacking.
This sequence keeps individual surface protection separate from bundle formation. It does not show film being shrunk around an entire bundle, and it does not use a heat-shrink tunnel. If your requirement involves a different packaging method, describe it explicitly so the configuration can be reviewed.
Demonstrated sequence
Five connected operations.
01
Feed
Receive a batch, separate a pipe and release it to the next operation.
02
Wrap
Feed film around the individual pipe, then seal and cut the material.
03
Collect
Accumulate the protected pipes into the required group.
04
Tape
Apply adhesive tape at defined positions to secure the group.
05
Stack
Transfer the completed package to the discharge and stacking position.
Configuration questions
Match the line to the production conditions.
Package and handling
Specify pieces per bundle, arrangement, tape locations and the destination after discharge. The illustrated six-pipe bundle is explanatory; actual quantities and handling requirements belong in the project brief.
Output and footprint
Share the incoming batch frequency, required output and available space. Include access for material loading, film changes and finished-package collection, not just the machine footprint.
Equipment and material
Review the machine and film together.
The automatic packaging line connects material movement with wrapping and grouping. The film specification addresses roll format, feeding and sealing requirements. Both need to suit the product and expected package.
Use the interactive line tour to examine the illustrated sequence, then send your known dimensions and open questions through the project enquiry form. Planning guides are available in Insights.
Application review
Different products. A defined packaging result.
Pinxu develops packaging configurations for stainless-steel pipes, aluminum profiles, plastic-steel profiles and other metal pipes. Material suitability and dimensional limits are established for each line.
Stainless-steel pipes
Start with the surface finish, section and length range. Distinguish individual film protection from the tape needed to form the finished group, and identify how the package will be collected and stored.
Aluminum profiles
Provide the section drawing and describe the visible surfaces. Review the wrapping coverage, profile geometry and support arrangement together rather than treating a profile as a round pipe of equivalent width.
Other profiles and pipes
For plastic-steel profiles and other metal pipes, identify the material and shape explicitly. The application list describes the range of project discussions; it does not establish universal compatibility with standard PH equipment.

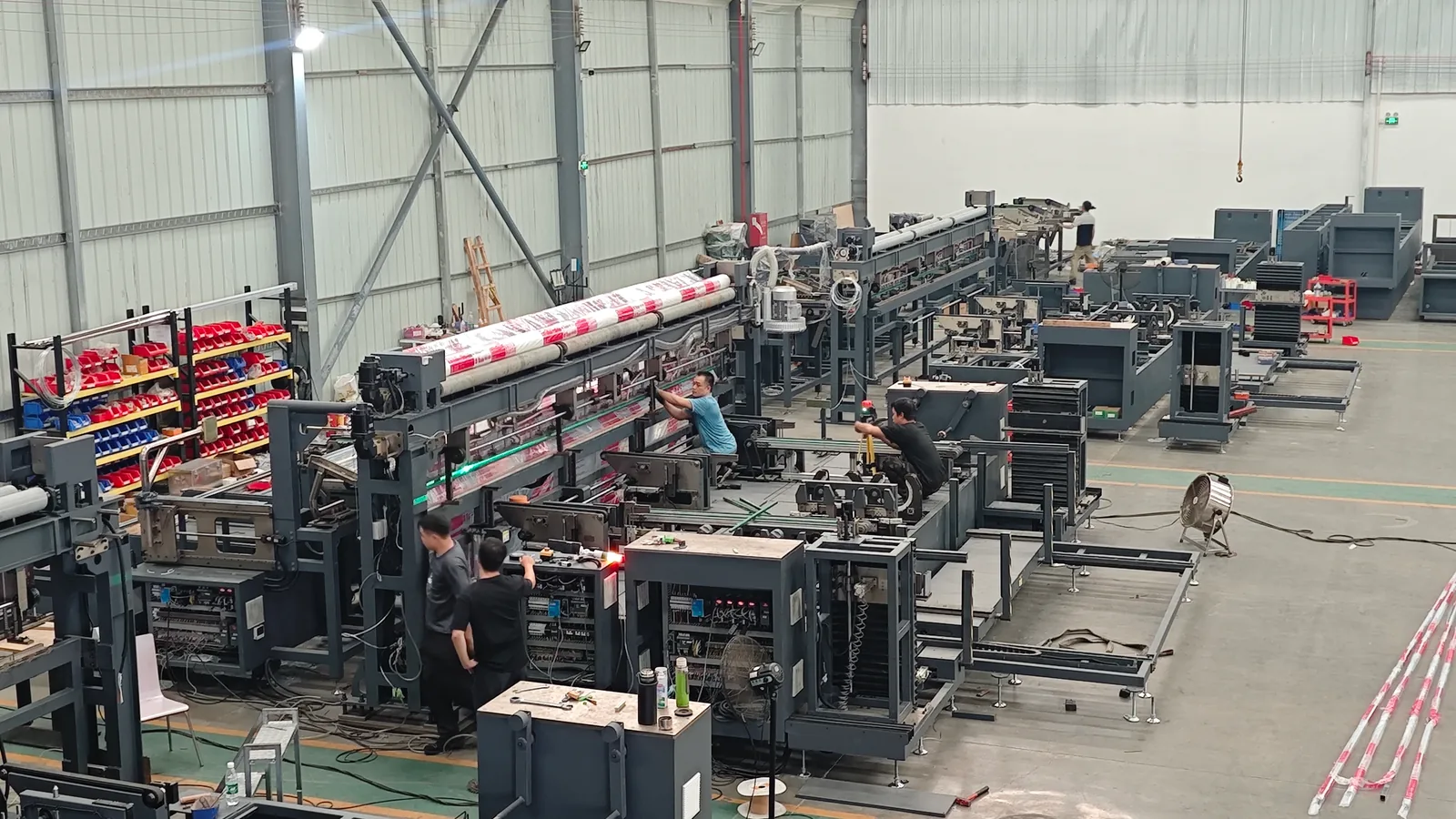

From manual work to a connected line
Address the cause of the packaging bottleneck.
| Repeated manual bagging | Connect automatic feeding, separation and individual wrapping in one sequence. |
|---|---|
| Uneven wrapping appearance | Match controlled film handling and sealing with a dedicated film specification. |
| Waiting between product sizes | Review non-stop specification-change capability against the actual product range and common film format. |
| Separate collection work | Include pipe accumulation, adhesive tape bundling and transfer to the stacking position in the proposed flow. |
| A constrained workshop | Use the modular design approach to review product dimensions, output requirements and layout together. |
These are configuration objectives, not quantified labor savings or guaranteed throughput improvements. Compare the proposed operation with your current production conditions.
Describe your packaging bottleneck ↗
